Classic Coleman Tools Parts

Coleman & AGM , New Style Air tube Cleaning Tool

Coleman & AGM , New Style Air tube Cleaning Tool

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out

Coleman Lantern / Stove Air Tube Clearing Tool/ Dent Air Tool New Style. Made in USA

Fits Coleman and AGM lanterns and stoves


New tool Design from the ground up by myself, this tool is designed to clear plug to air tubes and help with removal of dents.

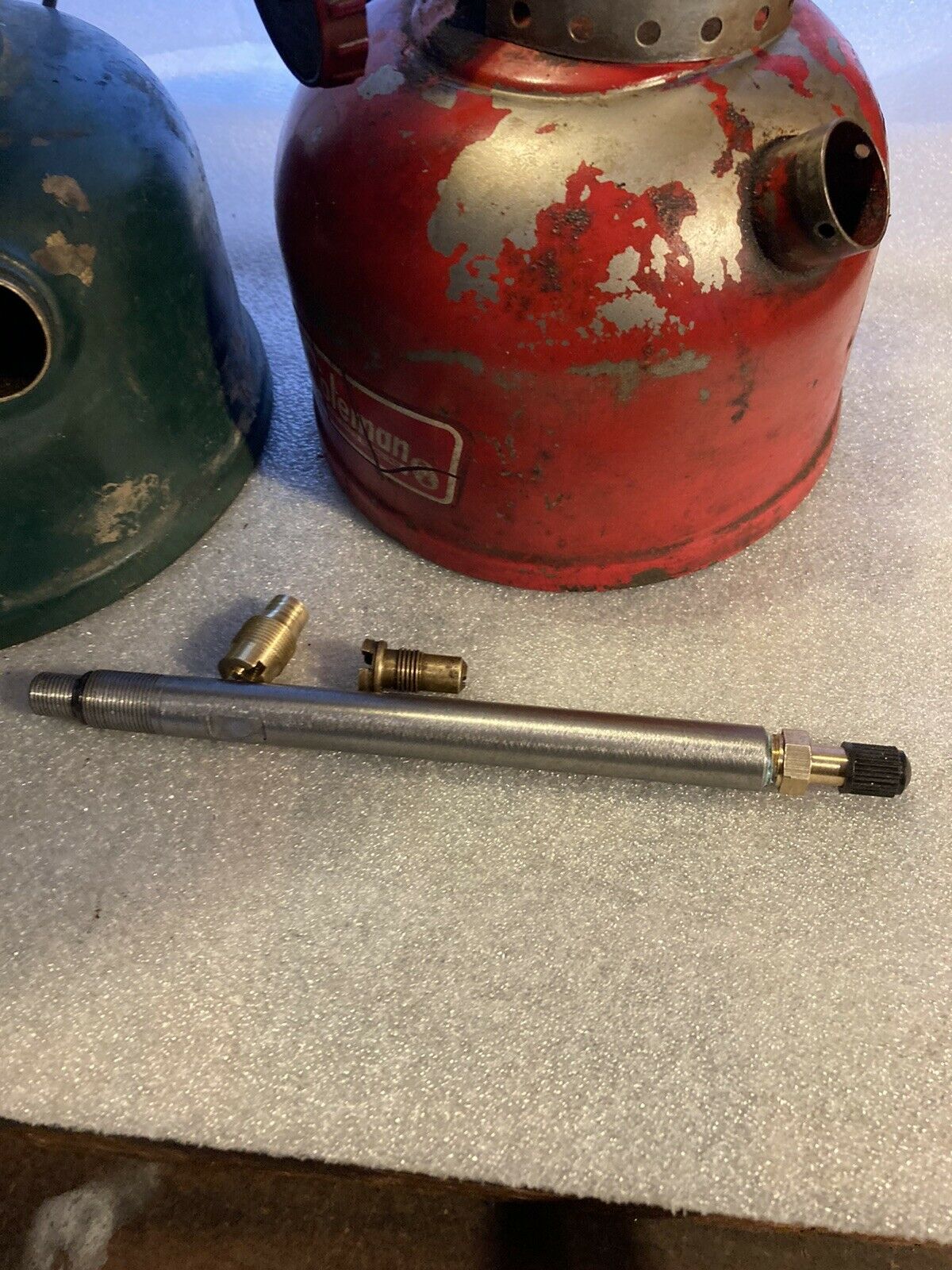

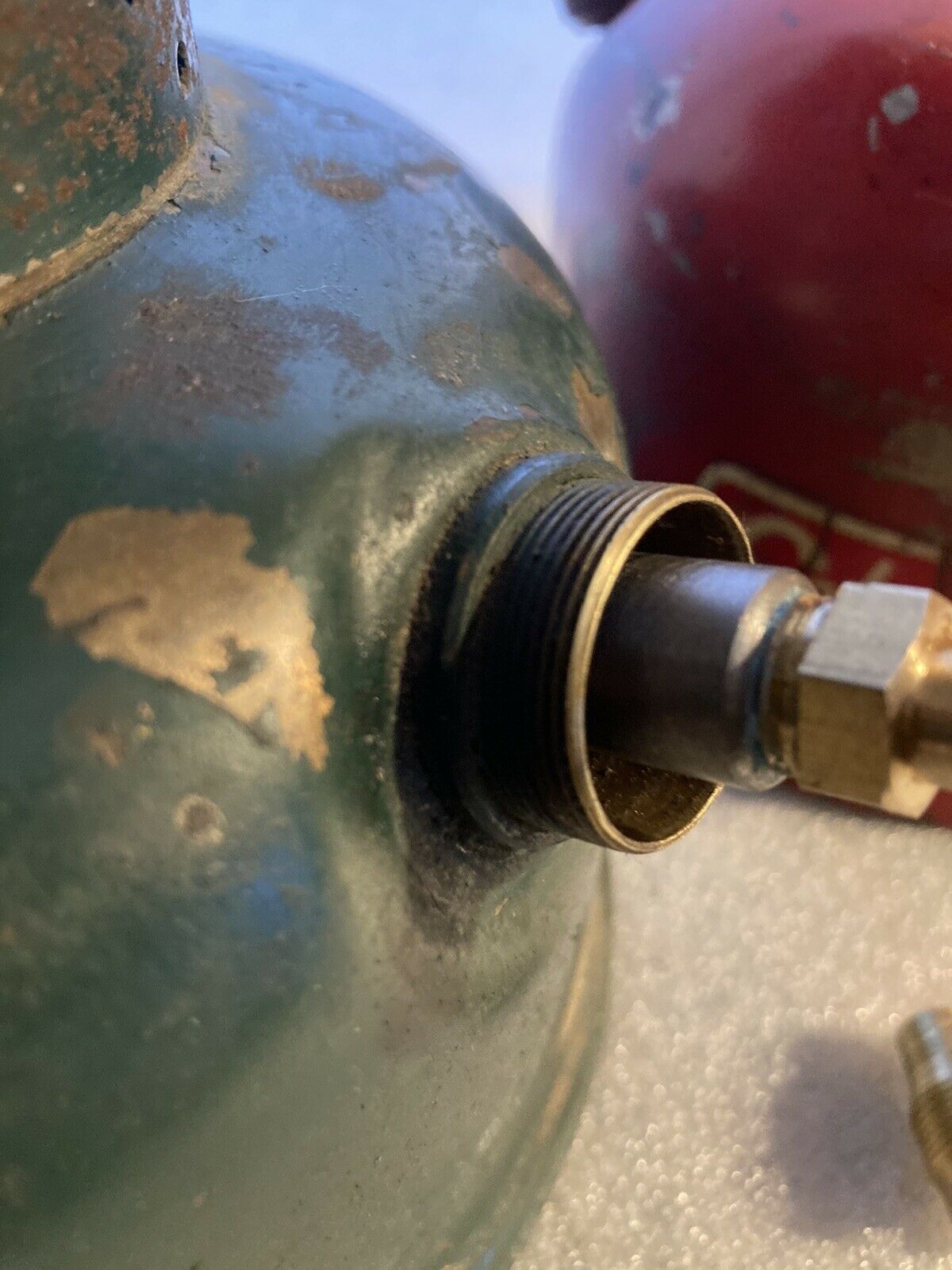

This tool threads into the pump well of your lantern or stove in the one photo you can see very clearly that that is a threaded pump retainer on a 252

This tool does new style and tapered seat or old style check valves with an air stem

Check valve has to be removed in order to use this tool

Ever had a stove or a lantern that has a plugged air tube in the pump well?Other tools may clear this blockage with hammers or tapping and hitting But you risk bending the font or tank where the pump is mounted or worse Much much worse Why risk it but do it right the first time, Use air bike pump  or small grease gun

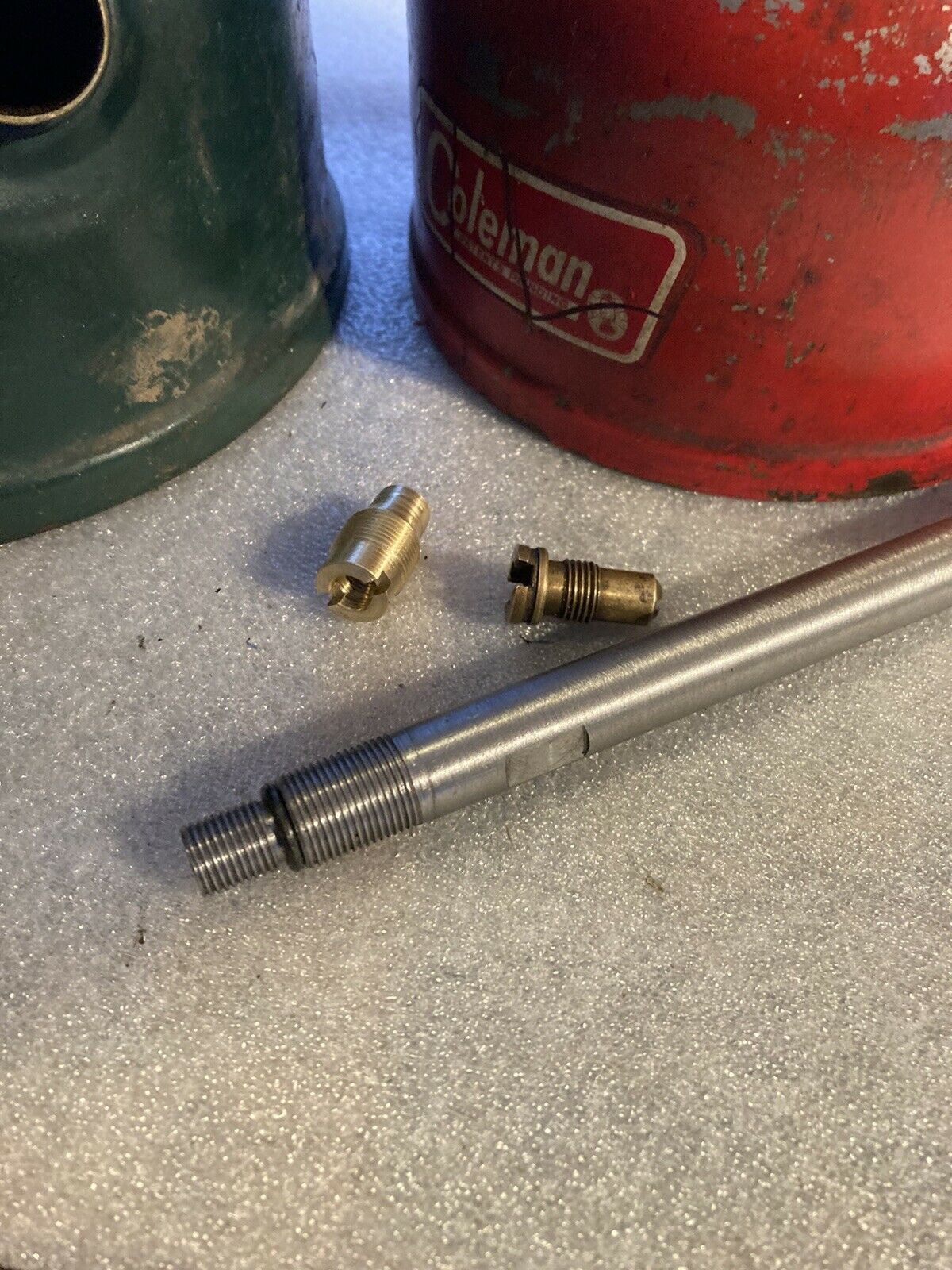

So if your lantern or stove can accept either check valve pictured new style/ old style . this tool will then do the work to clear your clogged air tube

Fits both flat seat and tapered seat check valves fits so many models it would take a page to list Does your lamp lantern or stove accept a tapered or a flat seat check valve if yes .Then this tool works

The AGM pictured has a flat seat 1/2-28 thread check valve 3/8-27 also This tool fits other brandsThe O-ring does the sealing

Bike pump not included .. Lanterns not included .. Vise not included

..Other check valve tool not included ..Check valve not included               grease fitting not included ..but for really tough ones you could carefully use a grease gun

You only are buying the air tube clearing tool

How to use:

Use bike pump or small grease gun

Plugged air tubes are very very simple. Install tool. Use air bike pump first.

For more stubborn plugs, utilize grease gun pressure and gently push the obstruction out of the end of the tube                                     with hydraulic pressure from the grease gun.

For the difficult plugged air tube or dent removal

Fill the fount completely with water. The air fitting on the end of the tool can be replaced with  a fitting for a grease gun                             or hose for the grease gun.  The small hand held model can be threaded into the end fitting for the air or Grease Zerk is a 1/8 inch pipe thread.

Once the fount is filled completely with water and light pressure on the grease gun can assist n removing some dents.


Lightly oil tool when finished to store.


Caution : Do not over pressurize. Do Not push bottom out.

 No returns

Patients applied for

We also sell under Greenmountainmold

USA Steel and USA machinery used to make this fine too.
