Classic Coleman Tools Parts

Check Valve Removal Tool, Fits Lanterns 200A, 220, 226, 228, 242. & more models. Most Stoves

Check Valve Removal Tool, Fits Lanterns 200A, 220, 226, 228, 242. & more models. Most Stoves

Regular price $28.00 USD
Regular price Sale price $28.00 USD
Sale Sold out

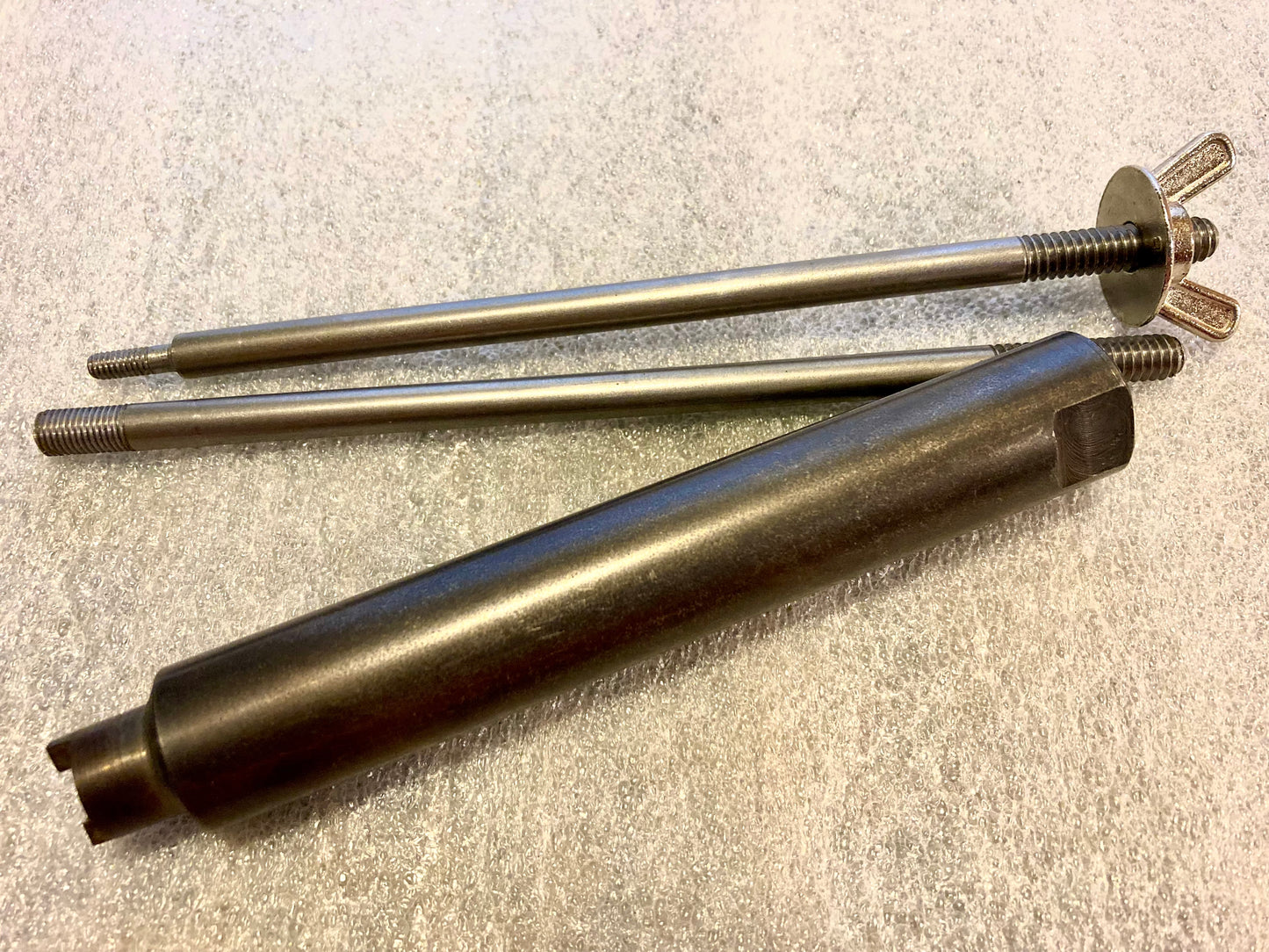

Coleman Check Valve Removal Tool with Flats

Fits 200A 220 226 228 424 and many more models. Fits most cam stoves

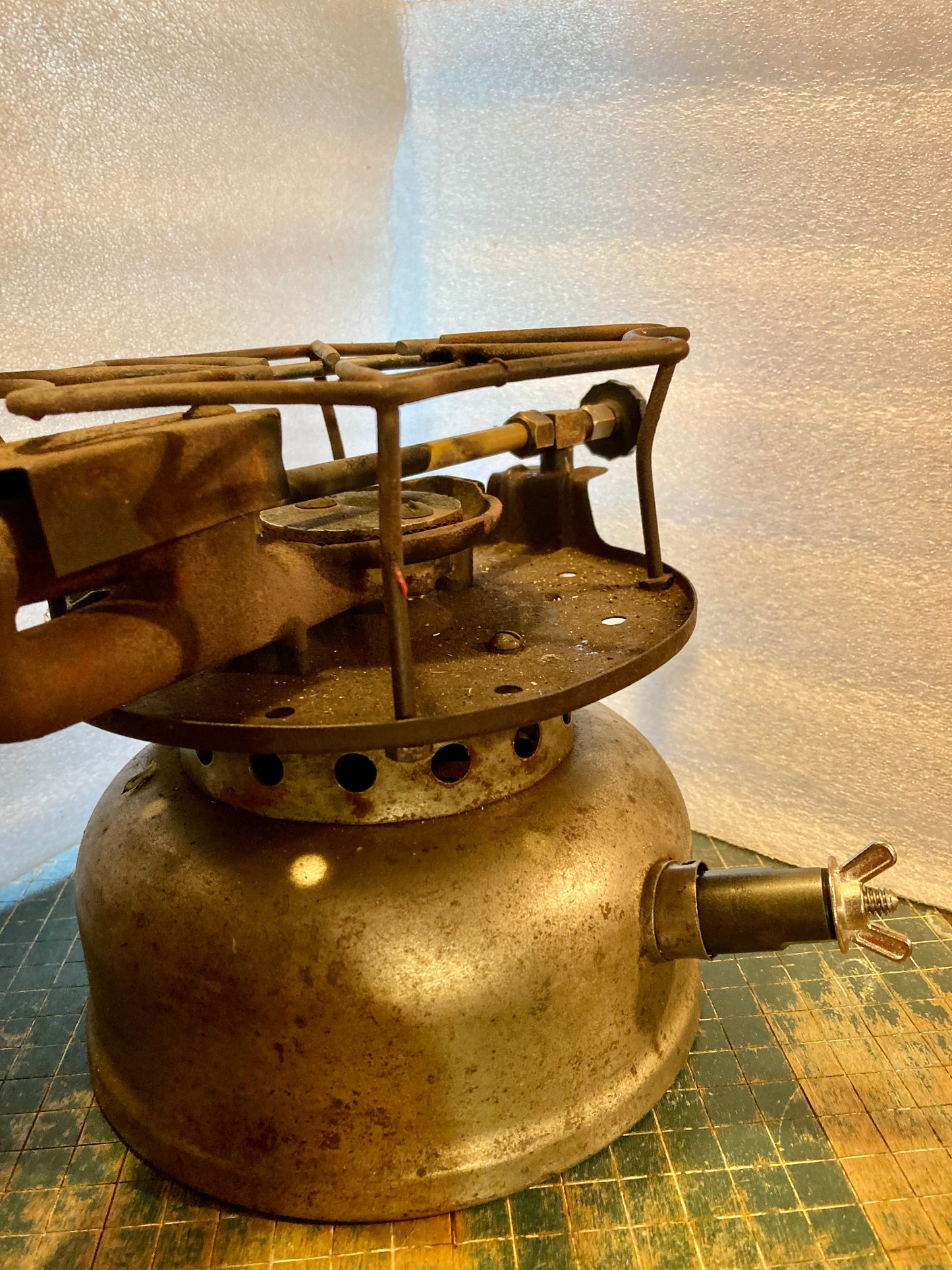

Fits most Coleman liquid fuel lanterns and camp stoves, with air stem check valve. Almost all Stoves .

General Directions for use:

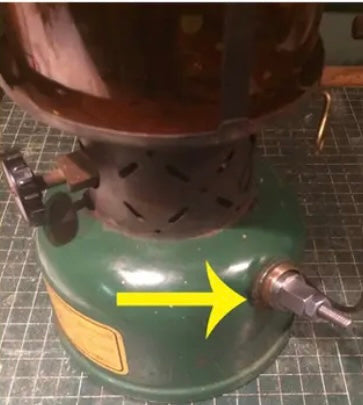

1.Remove the air stem from your lantern's check valve in order to determine which of the two threaded rods to use  (8-32 or ¼-32 thread)



2. Hand screw the rod into the check valve at least finger tight. Engage as much thread as possible.

3. Slide the tube down over the rod.

4. Make sure that the ears are fully engaged in the slot.Gently turn the tube until the ears drop into the slots cut in the check valve.

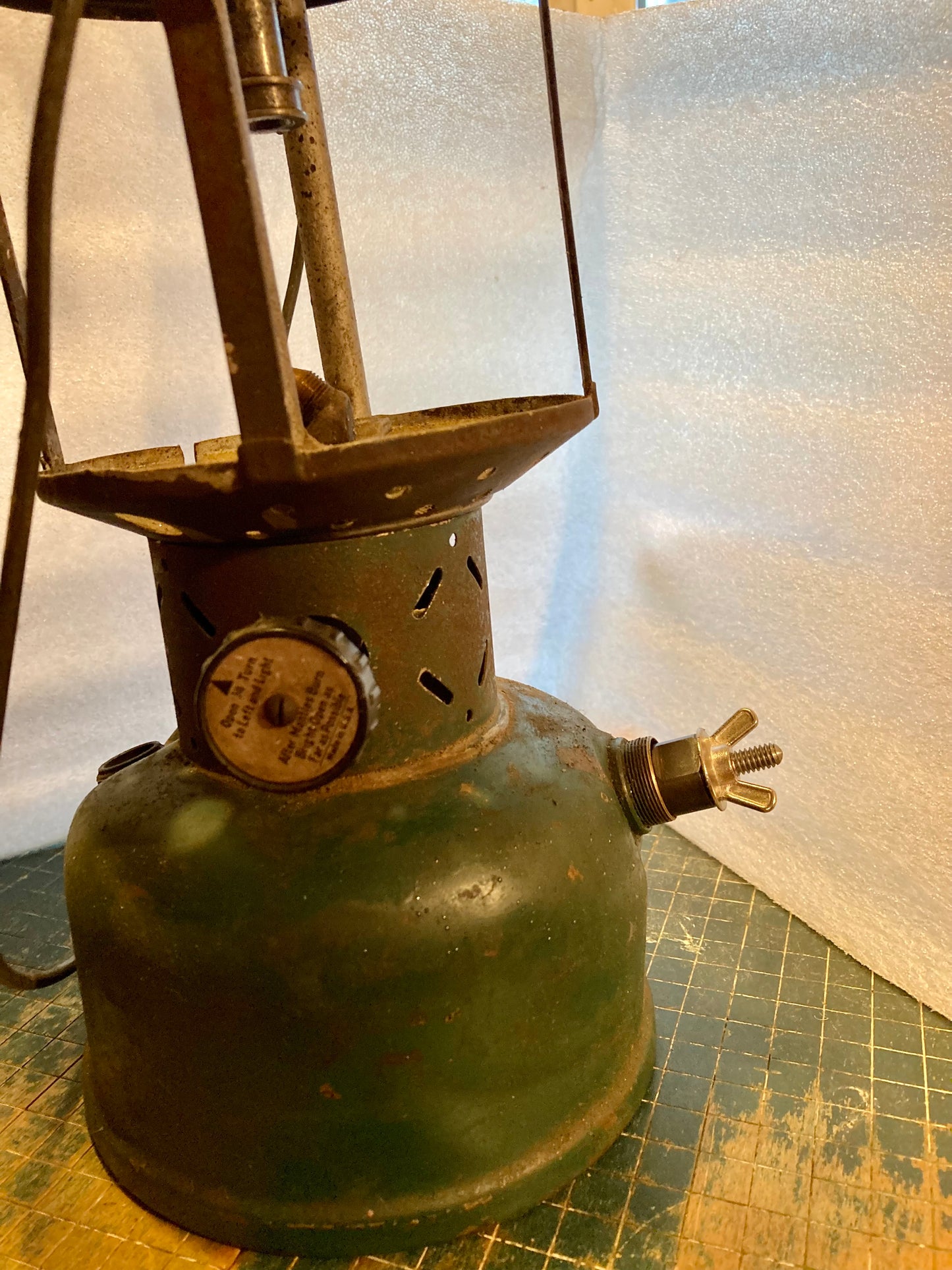

5. Drop a washer onto the rod and then screw on the wing nut(1/4-20 thread) and tighten just enough to eliminate any play in the tube and lock it into place. Caution: Do not over tighten as the brass threads in the check valve may strip!

6. Using adjustable wrench, fit it to the flats on the exposed end of the tube.

7. Hold the fount in a solid grip. If you have a vise, this is a great application for it. Give the wrench a solid turn counterclockwise. Do not side load the wrench. The check valve will loosen and you will be able to remove the entire assembly with the check valve attached.

8. Clean and loosen the ball bearing in the check valve and when free, screw the check valve back into the fount, or use a new replacement valve, we offer replacement check valves and other parts.

Be careful not to reinstall the valve too tight! It's also a good idea to lightly coat the tool with oil as it can rust in a damp environment.




Made by me in the USA.  I am also a collector of Coleman lanterns and a member of Coleman forums

I've been in business many years and have sold hundreds of these with 100% satisfaction as shown in my reviews.




Note: This auction is for the check valve removal tool and 2 rods Withwing  Nut only. The lantern is not for sale. I do have the other service tools ( fuel valve removel tools and vise) available in separate listings.

Please see my other items for sale!


No Returns > Not accepted unless item is grossly misrepresented. Should you have any issue with my tools, simply contact me for resolution.

Payment managed by EBay.

NYS residents will pay 8% sales tax.

Note: Due to Screen and lighting differences, Items color, size  may vary from Photo.

Shipping : Order processing within 3 business days upon payment (Holidays and weekends excluded).                                              usually shipped sooner.

The Tools are made and designed from the ground up by me in the USA in my prototype/product machine shop. Offering Tools to help in the Disassembling of your lantern or stoves to repair and clean them.

I also machine and build reproduction parts.
